NOSELAB ATS s.r.l.

PLASTIC AND RUBBER TESTING

BRITTLENESS + TR-TESTER

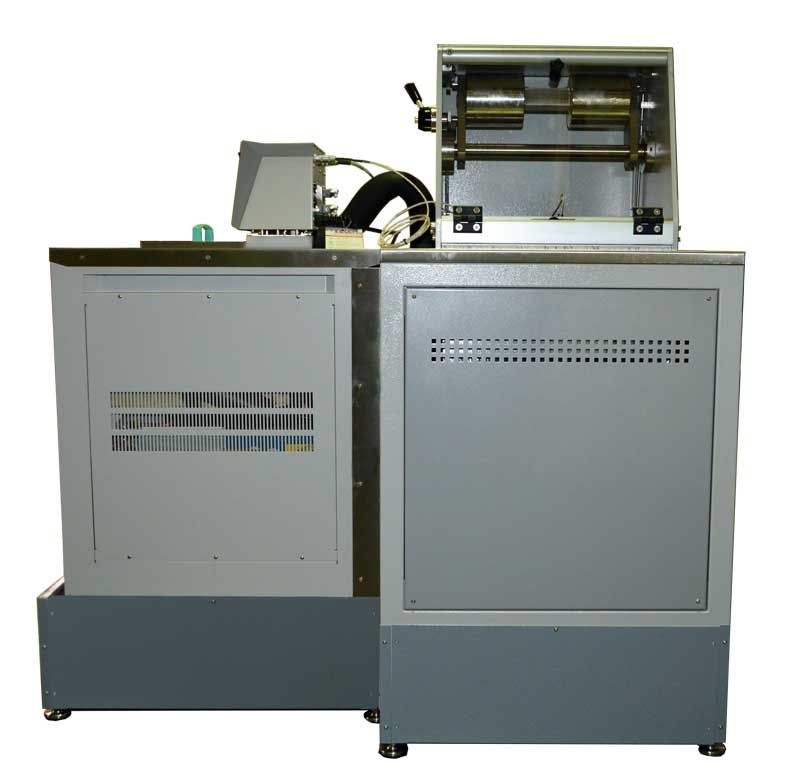

Brittleness + TR-Tester w/built-in cooling

10012010

Specific thermal testing

System to perform two of the most important tests for rubber and elastomers:

  • low temperature retraction (TR)
  • Brittleness Point for tests at a stabilized temperature both for the effects of crystallization and the elastic return of the specimens.

Equipped with an incremental temperature electronic programmer, the chiller unit allows to reach temperatures of -75°C, the test tank has a capacity of 20 liters.
To implement the impact of the Brittleness Point, the instrument uses a pendular hammer which, rotating around the constrained end, hits the specimen. Repeatability and constancy are ensured by an automatic release system of the hammer.

Standards

ASTM D 1329
ISO 2921
DIN 53546
ASTM D 2137 Meth A-B
ASTM B117
